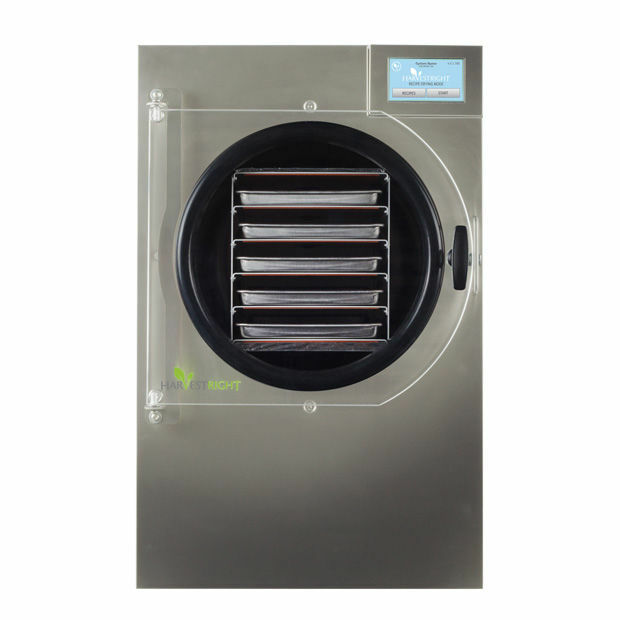

Harvest Right’s lyophilizer (freeze dryer) is the perfect addition to any laboratory. The scientific freeze dryer can be completely customized with your preferred processes. You can have multiple manageable profiles, each providing the ability to automatically power on and off the condensing unit and the vacuum pump in conjunction with ascending, controlled temperature and time settings.
Key Features & Benefits
- Convenience of 5-tray dryer in a table top unit.
- Full-color, touch-screen display.
- 7.57 litres ice condensing capacity.
- Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).
- Control of the rate of freeze. This means that the rate of freeze can be speeded up or slowed down.
- Control of the ultimate final freeze temperature.
- Control of the amount of time a material is held at the ultimate freeze temperature before the drying cycle is started.
- Control of the shelf temperature during the dry cycle. This includes setting as many as five different shelf temperatures, thus allowing the material to dry in phases, at different temperatures. For instance, you might have the material begin drying at -12.22ºC and increase the temperature in phases until the ultimate final dry temperature is 21.11ºC
- The shelf heaters can be set to automatically control the rate of sublimation during the primary drying cycle. Through this process, the unit has control of the attendant vacuum pressure.
- The system records and maintains a log of the pressure and temperature during all parts of the freeze-dry cycle.
- Provides ongoing, real-time display of pressure and temperature.
Technical Specifications
- Convenience of 5-tray dryer in a table top unit.
- Full-color, touch-screen display.
- Style: Bench/Table Top
- Holding Capacity: 7.57 litres of Sublimated Ice
- Min. Temp. Rating: Collector Cools to -43.3ºC
- Collector Material: Stainless Steel
- Drying Chamber: Included (Stainless Steel)
- Purge Valve: Included
- Voltage: 220 VAC
- Amp: 20 A
- Freeze dryer exterior dimensions: 48.26cm W x 63.5cm D x 73.66cm H
- Dimensions (without door or vacuum fitting) 45.72cm W x 53.98cm D x 73.66cm H
- Exterior: Stainless Steel or Powder Coated Aluminum
- Electronics: Includes a Full Color Touch Screen (10.92cm diagonal)
- Operation: Manual / Automated
- Vacuum Pump: Premier Industrial Vacuum Pump
What’s Included:
- Freeze Dryer
- Oil Pump (detachable vacuum pump that sits outside the freeze dryer)
- Stainless Steel Trays (set of 6)
- Guide to Freeze Drying
- Mylar Bags (50 qty)
- Oxygen Absorbers (50 qty)
- Impulse Sealer
Take food preservation to the next level with a Harvest Right Freeze Dryer from Naturalwise!
